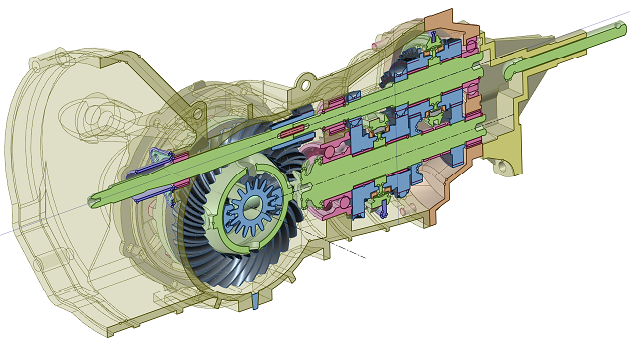

CADbench provides the thermal engineer with an environment to view and modify the CAD geometry and generate the analysis model. When generating the thermal analysis model from CAD geometry it is common practice to simplify the geometry.

When generating the thermal analysis model from CAD geometry it is common practice to simplify the geometry, removing unnecessary detail such as holes and fillets, and also extracting mid-plane surfaces.

Features Include:

• Enables users to import CAD parts and assemblies from virtually any CAD format.
• Simplifies and heals the geometry to prepare it for meshing.
• Enables engineers to modify the geometries easily if the design changes.
• Reduces time and costs considerably for product development.
